Structures we buildfrom steel.
A curated gallery of 6 isometric renders showcasing the range of structures AKR Steel Detailing Services LLC details — from steel truss bridges to 1,000-ft skyscrapers.
Six structures. One steel partner.
Filter by structure type or browse the entire collection. Click any card to inspect specifications, use cases and delivery format.
Real detailing.
Real jobs shipped.

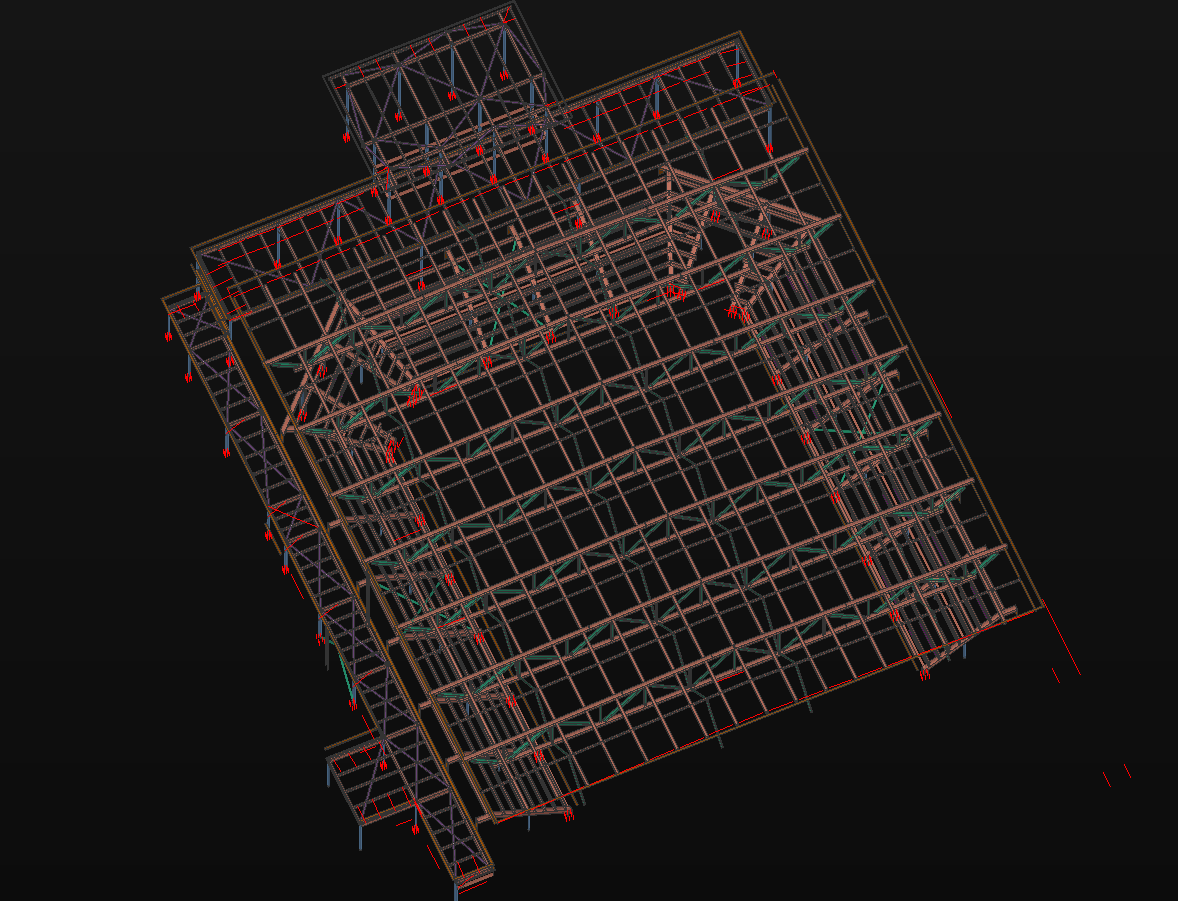

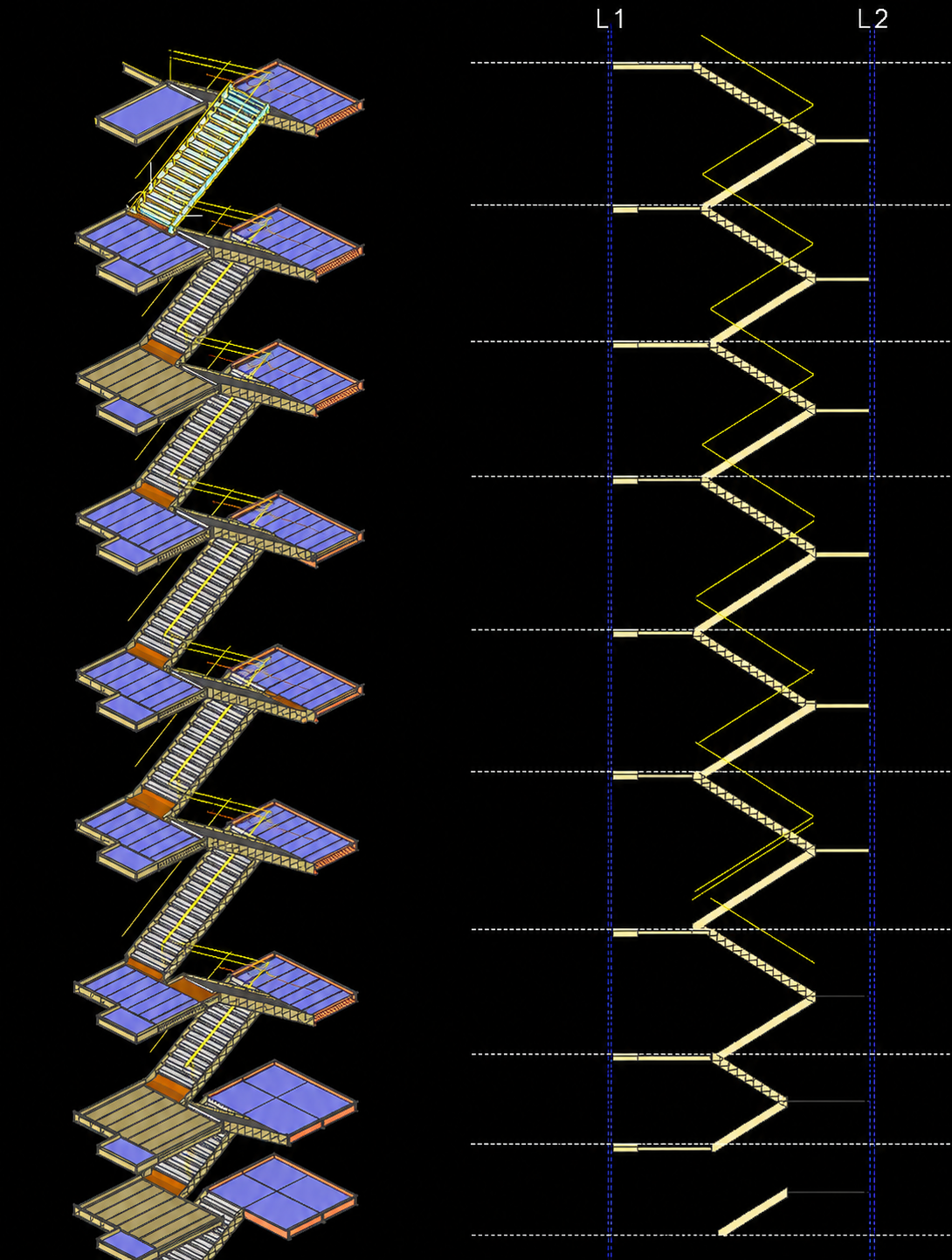

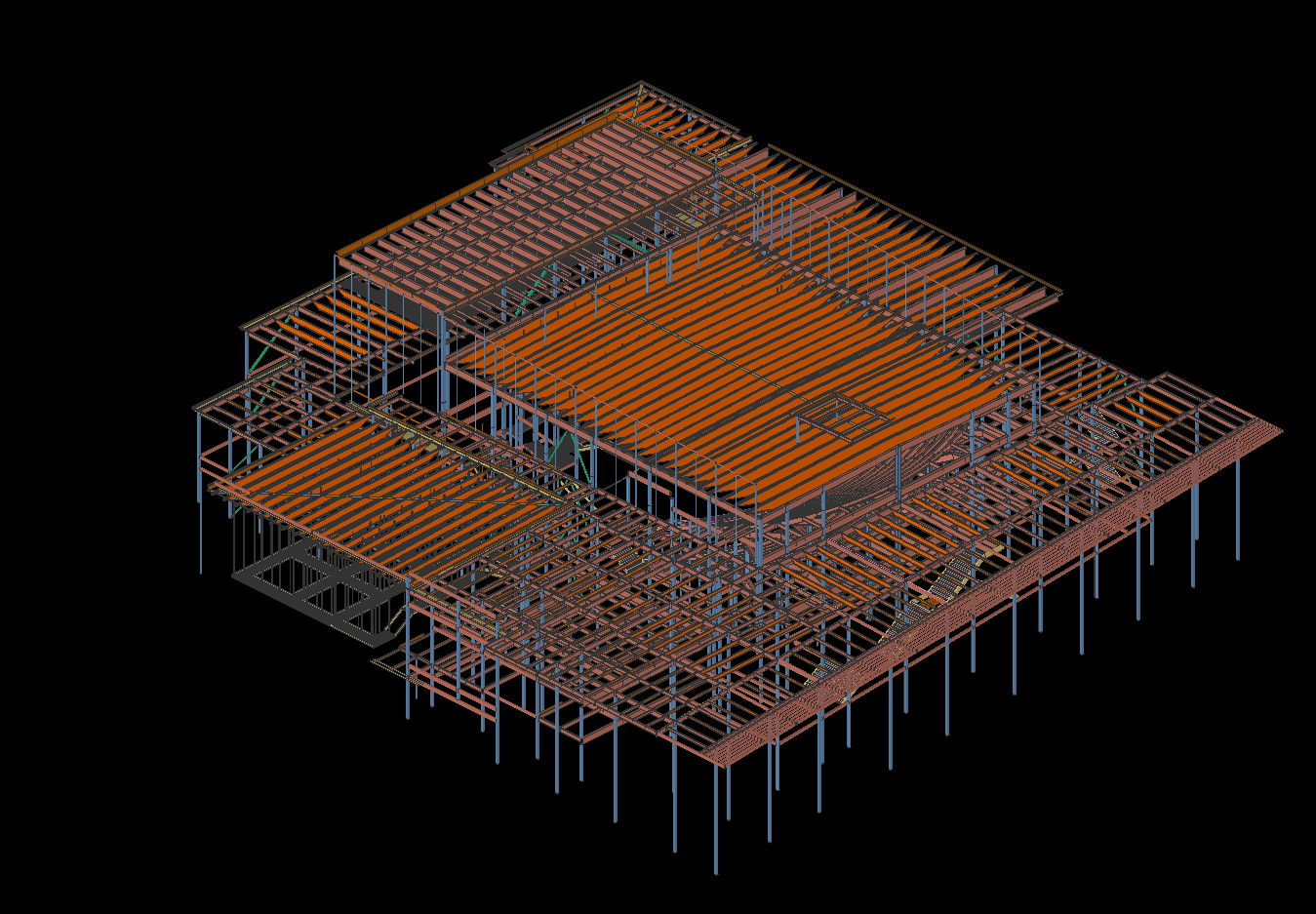

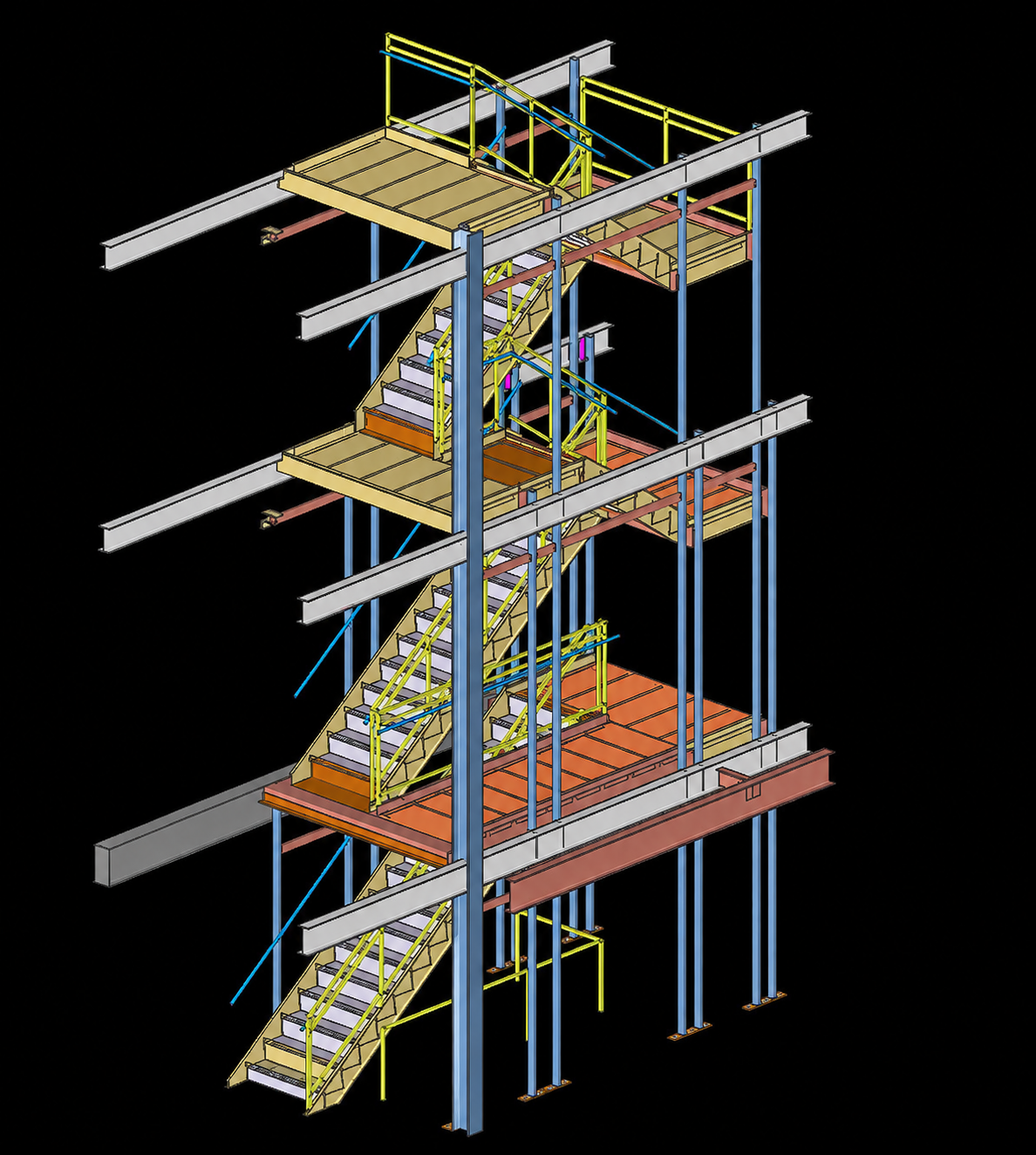

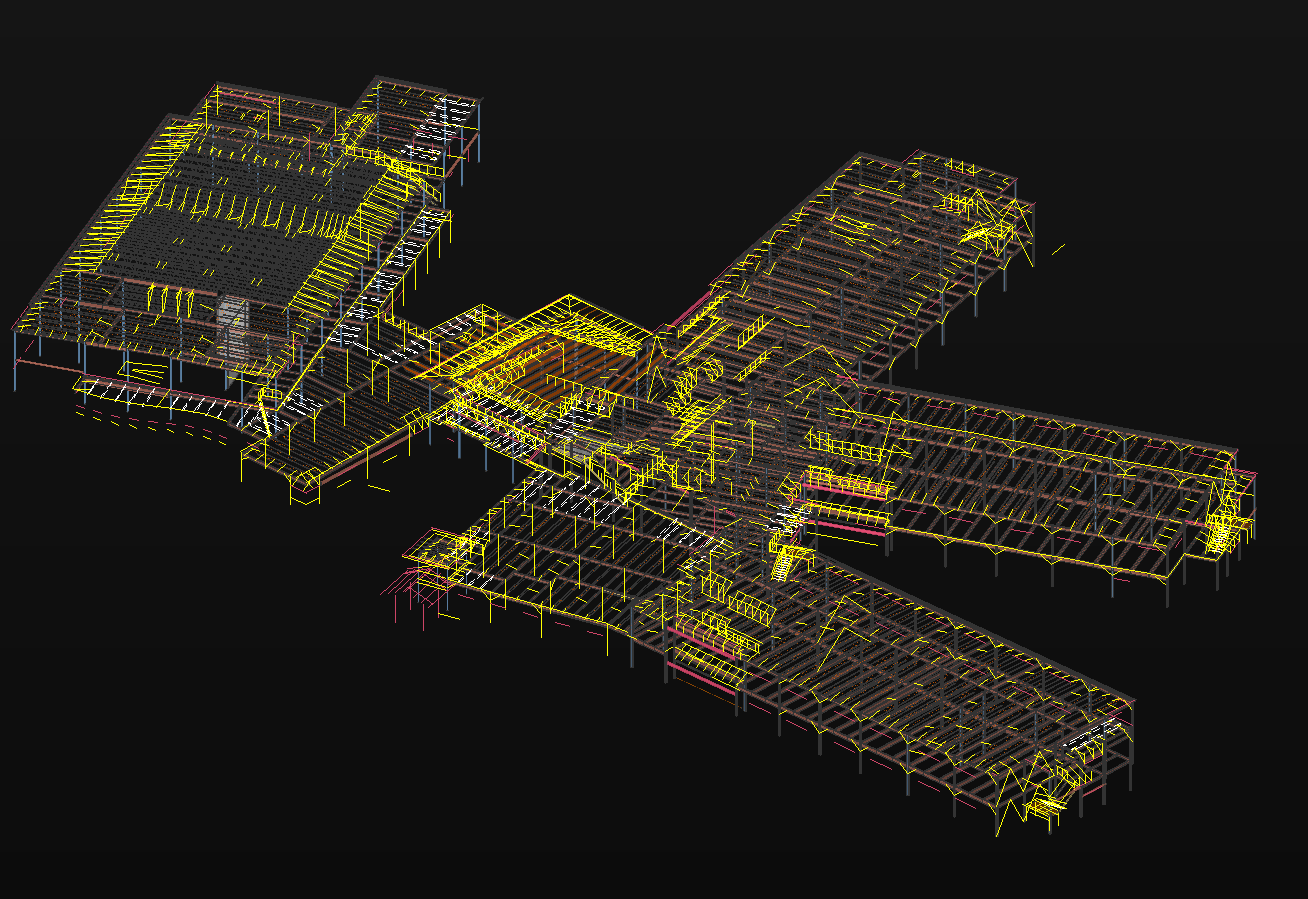

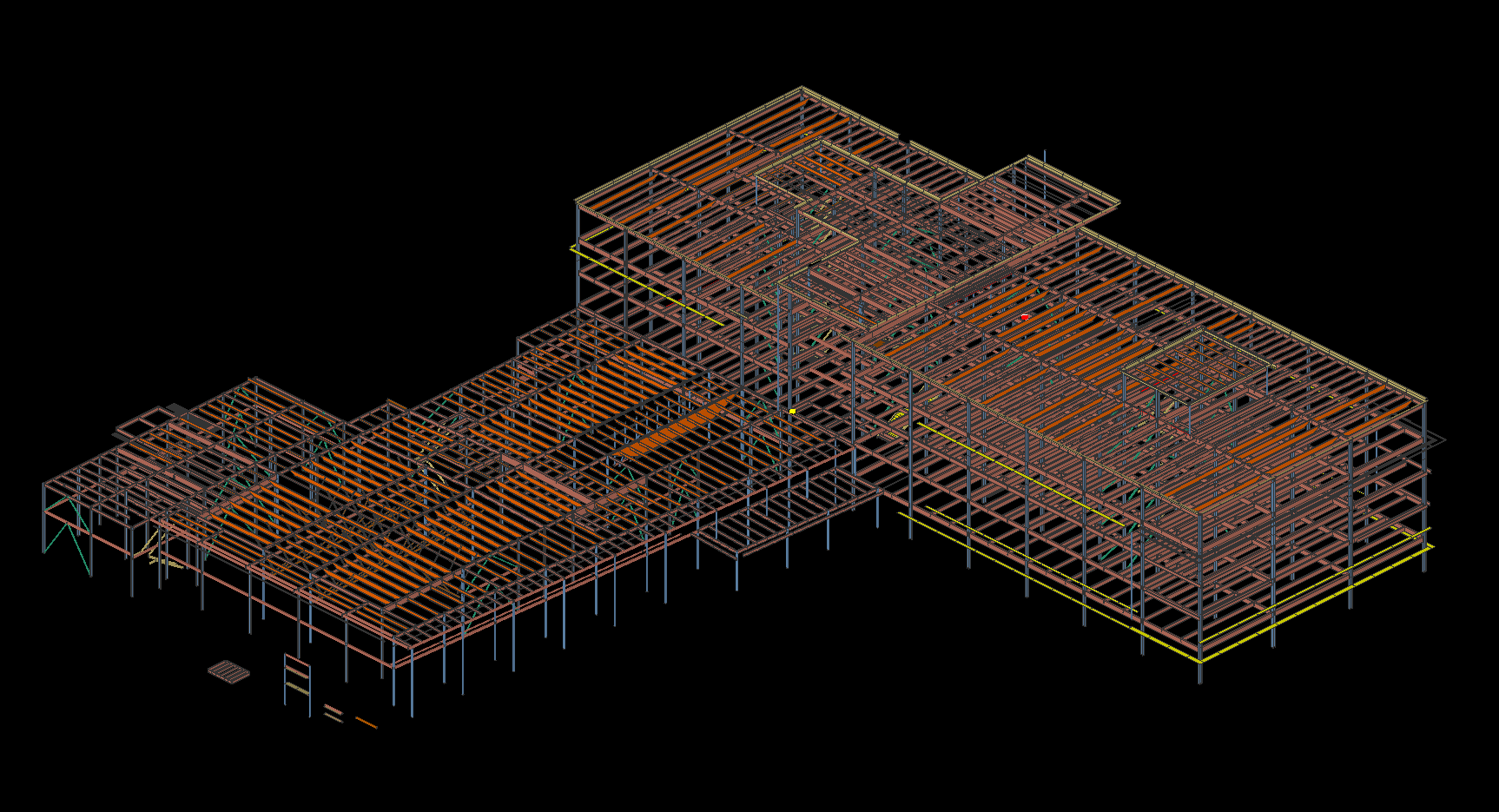

A selection of steel detailing projects we've delivered — from multi-tower commercial complexes to long-span industrial roofs. Click any project to view the model and scope.
End-to-end steel
detailing
built around the
fabricator.
From shop drawings to full BIM coordination, we deliver detailing that keeps fabrication moving and erection crews on schedule. Every drawing set is checked, cross-verified and ready to build.
Every software
we use is Genuine.
We work closely with Trimble and Design Data to fight piracy. Every seat is genuine, every project is traceable, and every drawing you receive is delivered on genuine, up-to-date tools.
Trimble
Authorized user of Trimble's flagship BIM platform for steel detailing, connection modeling and constructible design.
Design Data
Genuine SDS2 subscriptions for automatic connection design, clash detection and fabrication-ready output.
we run on
The detail is
in the details.
You don't need another vendor — you need a detailing partner that thinks like the fabricator, moves at the pace of the site, and gets it right the first time.
Every connection package is reviewed and stamped by US-certified structural PEs before it leaves our shop.
Priority queues for time-critical erection sequences — from RFI to revised drawings in as little as two business days.
Trusted by GCs, EPC firms and fabricators across the US on commercial, industrial and infrastructure builds.
Deep working knowledge of AISC 360, AWS D1.1, IBC and OSHA erection standards — no re-work at the mill.
Milestone-driven delivery with weekly progress reports, submittal tracking and IFC-lock dates you can bank on.
Dedicated FTP workspace per project — instant file exchange, revision-controlled drops and audit-ready logs 24/7.
Round-the-clock detailing across three shifts means your job keeps moving even while your US office sleeps.
What clients say
after they get the drawings.
Real feedback from GCs, EPC firms, fabricators and erectors across the US who've trusted us with their steel detailing.
“AKR turned around our connection package for a 22-story tower in 11 business days. Shop drawings were mill-ready — our fabricator ran the plates straight to CNC. No RFIs, no re-issues.”
22-story mixed-use tower
Have a project? Get in touch.
Share your project brief — clear-span, tonnage, delivery site — and our engineering team will respond within one business day.
